FTTX Outdoor Drop Cable Terminal Box , 24 Ports Fiber Optic Distribution Box

Model Number : CGP(05)A-24-2

Place of Origin : Shenzhen, China

MOQ : 1pcs

Payment Terms : T/T, L/C

Delivery Time : 10-20 working days

Packaging Details : Standard Carton

Name : Fiber Optic Distribution Box

Core : 24 ports

Interface : Available for FC\SC\ST\LC

Type : Wall and pole mountable

Working temperature : -40℃~65℃

Adapter : FC/SC/LC

Contact Now

Optical Fiber Enclosure FTTH Steel Fiber Optic Distribution Box CGP(05)A-24-2

Introduction

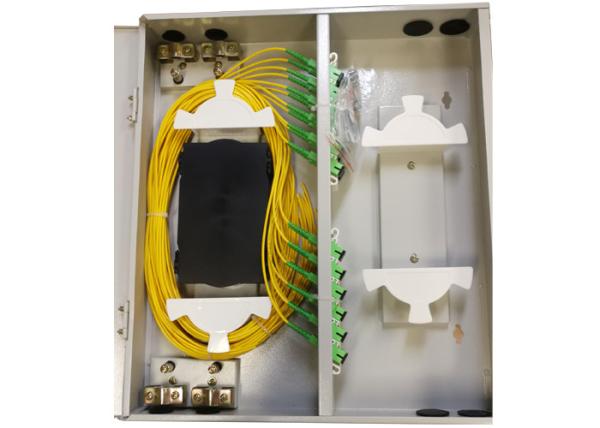

Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room. The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord. Provide fusion and storage appliance for optical cables.

Features
● The case body is made of cold rolled steel sheet, electrostatic spraying ,outdoor wall mounting, provide 24 adaptors, available for FCSCSTLC
● Reliable protection appliance of fixing, stripping and earthing for optical cables.
● Whole range protected design for fiber lay to ensure the bending radius ≥40mm
● Provide various accessories to avoid any unexpected damage to the fiber

Accessories
Accessories provided with the distribution box: heat shrinkable protective sleeve, nylon tie,Labeling paper, insulation tape ; Accessories to be ordered in addition: adapter, pigtail, patch cord.

Model. No.	Dimension (mm) (H x W x D)	Max. Capacity (Fiber Count)	Max. No of Adapters (FC.SC,LC, ST, duplex LC or duplex SC)	No. of Ports
CGP(05)A-24-2	45540580	24	24	6 ports or customer specified
